HRPOG-4

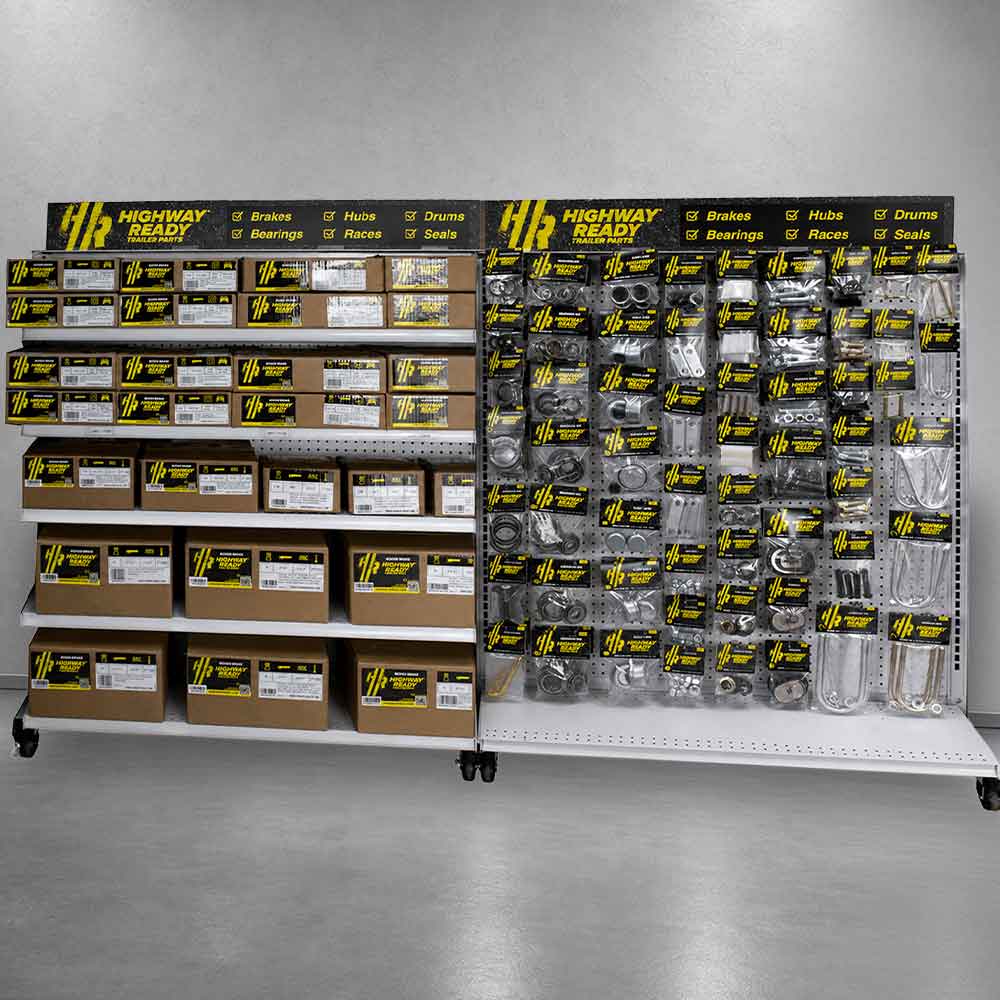

Complete trailer axle parts planogram featuring service kits, suspension hardware, brake components, prepacked hubs, and drums for 2K–8K axle applications.

Display reference

HRPOG-4 Display layout

Use the map number to match each SKU to its position on the display.

Display96" x 48"

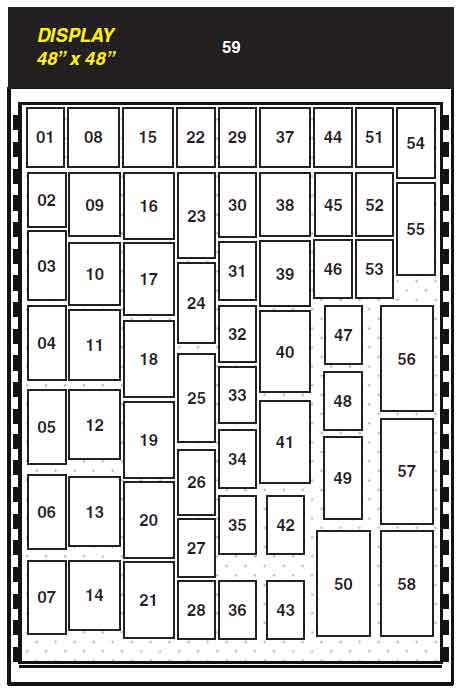

Map ANumbered layout

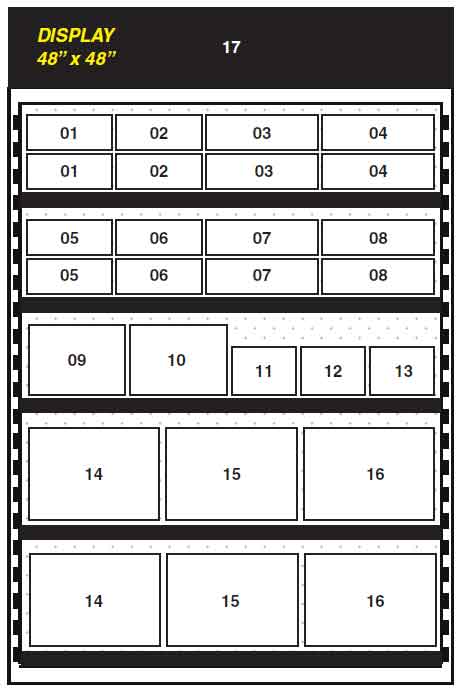

Map BNumbered layout
Product reorder tag

Includes out-of-stock tags for pegged items to help identify temporarily missing products and keep the display organized until items are restocked.

Parts list

Map # | SKU | Description | QTY

Map A parts list

Map A parts list 1
# SKU Description QTY
01 HRS1 Seal Kit, 2.2K Axle, 1.5" I.D. 4
02 HRS2 Seal Kit 2.2K Axle, 1.25" I.D. 4
03 HRS3 Seal Kit, 3.5K, 4.4K Axle, 1.719" I.D. 4
04 HRS5 Seal Kit, 5.2K, 6K, 7K Axle, 2.225" I.D. 4
05 HRS6 Seal Kit, 7K, 8K Axle, 2.225" I.D. 3
06 HRTP1 7-Way Plug, Trailer End 3
07 HRHP1 Hitch Pin, 5/8" 2"-2.5" 4
08 HRBK6 Bearing/Race/Seal Kit 2
09 HRBK8 Bearing/Race/Seal Kit 2
10 HRBK1 Bearing/Race/Seal Kit, 3.5K 5
11 HRBK12 Bearing/Race/Seal Kit 8K 4
12 HRBK3 Bearing/Race/Seal Kit, 6K 4
13 HRBK4 Bearing/Race/Seal Kit, 7K 4
14 HRBK5 Bearing/Race/Seal Kit, 8K 4
15 HRDC4 Dust Cap Kit, 3.5K Axle 3
16 HRDC5 Dust Cap Kit, 4.4K, 5.2K, 6K Axles 3
17 HRDC6 Dust Cap Kit, 7K & 8K 3
18 HROC3 Oil Cap Kit, 7K-8K 2
19 HRDC1 Dust Cap Kit, 2.2K & 3.5K 3
20 HRDC2 Dust Cap Kit, 4.4K, 5.2K, 6K Axles 3
21 HRDC3 Dust Cap Kit, 7K and 8K Axle 3
22 HRDC7 Rubber Plugs, Grease Caps 4
23 HRSS1 Shackle Strap Kit, Single Axle 4
24 HRSS2 Shackle Strap Kit, Single Axle 4
25 HRSS3 Shackle Strap Kit, Single Axle 4
26 HRLN4 Lug Nut Kit, 7K Axle 4
27 HRLN5 Lug Nut Kit, 7K, 7.2K, and 8K Axle 4
28 HRLN6 Lug Nut Kit, 7K, 7.2K, and 8K Axle 4
29 HRB1 Spring Eye Bushing Kit, Single Axle 5
30 HRB7 Spring Eye Bushing Kit, Tandem Axle 5
31 HRB4 Bronze Bushing Kit, Double Eye 4
32 HRB10 Equalizer Bushing Kit 3
33 HRK1 Wheel Keeper Kit Some 2.2K-8K 4
34 HRK2 Keeper Kit, 2.2K-8K 4
35 HRK3 Keeper Kit 2.2K-8K 4
36 HRK4 Keeper Kit 1"D Style Spindle 4
37 HRSB4 Zinc Shackle Bolt Kit, Tandem 4
38 HRSB13 Shackle Bolt Kit, Tandem 3
39 HRSB10 Shackle Bolt Kit, Tandem 4
40 HRSB11 Equalizer Bolt Kit, Tandem 3
41 HRM3 Magnet Kit, 12.25" Brakes 3
42 HRM4 Magnet Kit, Fits 12" Brakes 4
43 HRM5 Magnet Kit, Fits 10" Brakes 4
44 HRWS1 Wheel Stud, 1/2" 2K-3.5K 4
45 HRWS2 Wheel Stud, 1/2", 3.5K, 4.4K, 6K, 7K 4
46 HRWS3 Wheel Stud, 1/2", 5.2K, 6K, 7K 4
47 HRWS4 Wheel Stud, 9/16", 7K-8K 4
48 HRWS5 Wheel Stud, 9/16", 7K-8K 4
49 HRWS6 Wheel Stud, 5/8", 7K-8K 4
50 HRUB8 U-Bolt Kit 2
51 HRSP2 Snapper Pin, 1/4" X 1.75" 5
52 HRSP9 Snapper Pin, 5/16" X 2.25" 5
53 HRSP14 Snapper Pin, 3/8" X 2.38" 5
54 HRSP5 Snapper Pin, 1/4" X 3.5" 5
55 HRUB1 U-Bolt Kit 3
56 HRUB3 U-Bolt Kit 4
57 HRUB5 U-Bolt Kit 4
58 HRUB7 U-Bolt Kit 3
59 HRGH-48X6 Gondola Header 1

Map B parts list

Map B parts list 1
# SKU Description QTY
01 HR23-27-B Electric Brake, RH, 3.5K 2
02 HR23-26-B Electric Brake, LH, 3.5K 2
03 HR23-180-B Electric Brake, LH, 5.2, 6K, 7K 2
04 HR23-181-B Electric Brake, RH, 5.2, 6K, 7K 2
05 HR23-469-B Electric Brake, RH, 3.5K 2
06 HR23-468-B Electric Brake, LH, 3.5K 2
07 HR23-465-B Electric Brake, RH, 5.2, 6K, 7K 2
08 HR23-464-B Electric Brake, LH, 5.2, 6K, 7K 2
09 HR84546-PP Prepacked, Drum, 3.5K, 545 1
10 HR84556-PP Prepacked, Drum, 3.5K, 550 1
11 HR84545-PP Prepacked, Hub, 3.5K, 545 1
12 HR84550-PP Prepacked, Hub, 3.5K, 550 1
13 HRBT9-545SF-PP Prepacked Hub, 2K, 545 1
14 HR42656-PP Prepacked, Drum, 6K, 655 2
15 HR42866-PP Prepacked, Drum, 7K, 865, 1/2" 2
16 HR42866-9/16-PP Prepacked, Drum, 7K, 865, 9/16" 2
17 HRGH-48X6 Gondola Header 1
