HRPOG-3

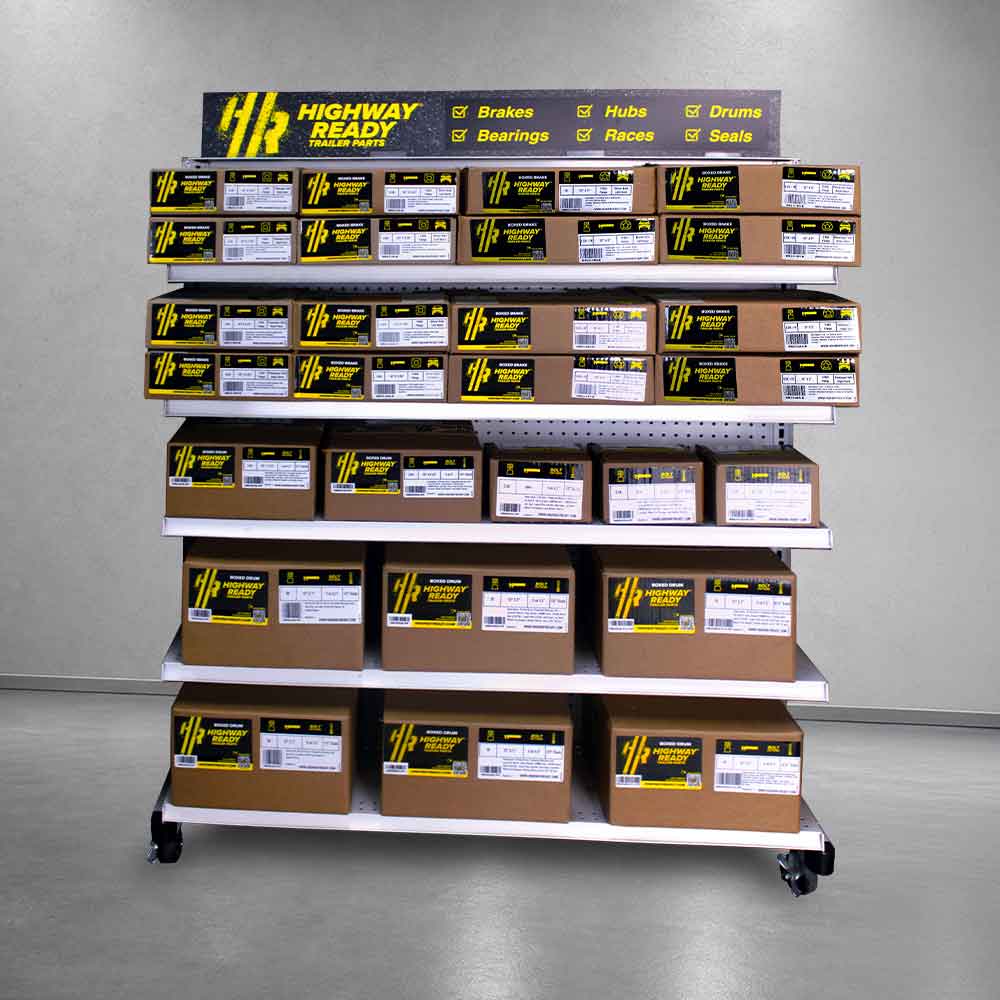

Trailer brake and hub/drum planogram featuring electric brake assemblies, prepacked hubs, and prepacked drums for 2K–7K axle applications.

Display reference

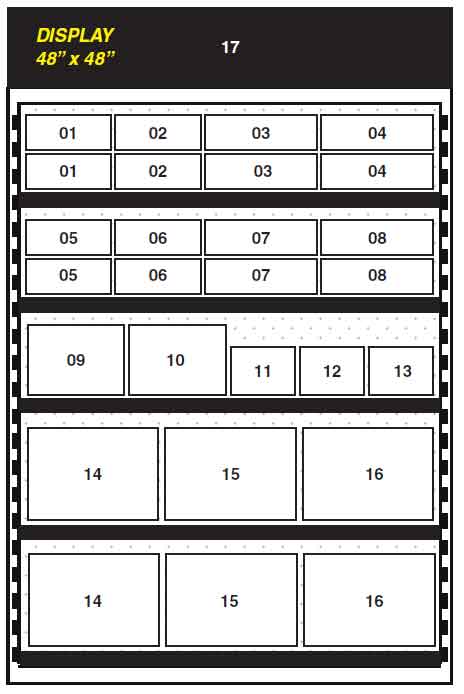

HRPOG-3 Display layout

Use the map number to match each SKU to its position on the display.

Display48" x 48"
MapNumbered layout

Parts list

Map # | SKU | Description | QTY

Parts list 1
# SKU Description QTY
01 HR23-27-B Electric Brake, RH, 3.5K 2
02 HR23-26-B Electric Brake, LH, 3.5K 2
03 HR23-180-B Electric Brake, LH, 5.2, 6K, 7K 2
04 HR23-181-B Electric Brake, RH, 5.2, 6K, 7K 2
05 HR23-469-B Electric Brake, RH, 3.5K 2
06 HR23-468-B Electric Brake, LH, 3.5K 2
07 HR23-465-B Electric Brake, RH, 5.2, 6K, 7K 2
08 HR23-464-B Electric Brake, LH, 5.2, 6K, 7K 2
09 HR84546-PP Prepacked, Drum, 3.5K, 545 1
Parts list 2
# SKU Description QTY
10 HR84556-PP Prepacked, Drum, 3.5K, 550 1
11 HR84545-PP Prepacked, Hub, 3.5K, 545 1
12 HR84550-PP Prepacked, Hub, 3.5K, 550 1
13 HRBT9-545SF-PP Prepacked Hub, 2K, 545 1
14 HR42656-PP Prepacked, Drum, 6K, 655 2
15 HR42866-PP Prepacked, Drum, 7K, 865, 1/2" 2
16 HR42866-9/16-PP Prepacked, Drum, 7K, 865, 9/16" 2
17 HRGH-48X6 Gondola Header 1
