Display reference

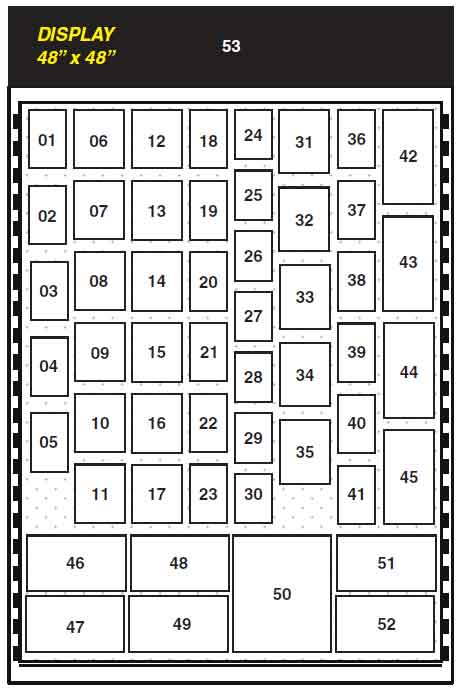

HRPOG-2 Display layout
Use the map number to match each SKU to its position on the display.
Display48" x 48"
MapNumbered layout
Includes out-of-stock tags for pegged items to help identify temporarily missing products and keep the display organized until items are restocked.
Parts list
Map # | SKU | Description | QTY
| # | SKU | Description | QTY |
|---|---|---|---|
| 01 | HRS1 | Seal Kit, 2.2K Axle, 1.5" I.D. | 4 |
| 02 | HRS2 | Seal Kit 2.2K Axle, 1.25" I.D. | 4 |
| 03 | HRS3 | Seal Kit, 3.5K, 4.4K Axle, 1.719" I.D. | 5 |
| 04 | HRS5 | Seal Kit, 5.2K, 6K, 7K Axle, 2.225" I.D. | 5 |
| 05 | HRS6 | Seal Kit, 7K, 8K Axle, 2.225" I.D. | 3 |
| 06 | HRBK6 | Bearing/Race/Seal Kit | 3 |
| 07 | HRBK8 | Bearing/Race/Seal Kit | 3 |
| 08 | HRBK1 | Bearing/Race/Seal Kit, 3.5K | 5 |
| 09 | HRBK3 | Bearing/Race/Seal Kit, 6K | 4 |
| 10 | HRBK4 | Bearing/Race/Seal Kit, 7K | 4 |
| 11 | HRBK5 | Bearing/Race/Seal Kit, 8K | 4 |
| 12 | HRDC4 | Dust Cap Kit, 3.5K Axle | 3 |
| 13 | HRDC5 | Dust Cap Kit, 4.4K, 5.2K, 6K Axles | 3 |
| 14 | HRDC6 | Dust Cap Kit, 7K & 8K | 3 |
| 15 | HRDC1 | Dust Cap Kit, 2.2K & 3.5K | 3 |
| 16 | HRDC2 | Dust Cap Kit, 4.4K, 5.2K, 6K Axles | 3 |
| 17 | HRDC3 | Dust Cap Kit, 7K and 8K Axle | 3 |
| 18 | HRDC7 | Rubber Plugs, Grease Caps | 5 |
| 19 | HRSS1 | Shackle Strap Kit, Single Axle | 5 |
| 20 | HRSS2 | Shackle Strap Kit, Single Axle | 5 |
| 21 | HRSS3 | Shackle Strap Kit, Single Axle | 5 |
| 22 | HRLN2 | Lug Nut Kit, 2.2K and 3.5K Axle | 5 |
| 23 | HRLN5 | Lug Nut Kit, 7K, 7.2K, and 8K Axle | 4 |
| 24 | HRB1 | Spring Eye Bushing Kit, Single Axle | 5 |
| 25 | HRB7 | Spring Eye Bushing Kit, Tandem Axle | 4 |
| 26 | HRB4 | Bronze Bushing Kit, Double Eye | 4 |
| 27 | HRWS1 | Wheel Stud, 1/2" 2K-3.5K | 4 |
| # | SKU | Description | QTY |
|---|---|---|---|
| 28 | HRWS2 | Wheel Stud, 1/2", 3.5K, 4.4K, 6K, 7K | 4 |
| 29 | HRWS3 | Wheel Stud, 1/2", 5.2K, 6K, 7K | 4 |
| 30 | HRWS5 | Wheel Stud, 9/16", 7K-8K | 4 |
| 31 | HRSB4 | Zinc Shackle Bolt Kit, Tandem | 4 |
| 32 | HRSB13 | Shackle Bolt Kit, Tandem | 4 |
| 33 | HRSB10 | Shackle Bolt Kit, Tandem Axle | 4 |
| 34 | HRSB11 | Equalizer Bolt Kit, Tandem | 4 |
| 35 | HROC3 | Oil Cap Kit, 7K-8K | 3 |
| 36 | HRTP1 | 7-Way Plug, Trailer End | 3 |
| 37 | HRHP1 | Hitch Pin, 5/8" 2"-2.5" | 4 |
| 38 | HRK1 | Wheel Keeper Kit Some 2.2K-8K | 4 |
| 39 | HRK2 | Keeper Kit, 2.2K-8K | 4 |
| 40 | HRK3 | Keeper Kit 2.2K-8K | 4 |
| 41 | HRK4 | Keeper Kit 1"D Style Spindle | 5 |
| 42 | HRUB1 | U-Bolt Kit | 2 |
| 43 | HRUB3 | U-Bolt Kit | 4 |
| 44 | HRUB5 | U-Bolt Kit | 4 |
| 45 | HRUB7 | U-Bolt Kit | 3 |
| 46 | HR23-27-B | Boxed Electric Brake, RH, 3.5K | 1 |
| 47 | HR23-26-B | Boxed Electric Brake, LH, 3.5K | 1 |
| 48 | HR23-181-B | Electric Brake, RH, 5.2, 6K, 7K | 1 |
| 49 | HR23-180-B | Electric Brake, LH, 5.2, 6K, 7K | 1 |
| 50 | HR42866-PP | Boxed Drum, 7K, 865 | 1 |
| 51 | HR84545-PP | Boxed Hub, 3.5K, 545 | 1 |
| 52 | HR84546-PP | Boxed Drum, 3.5K, 545 | 1 |
| 53 | HRGH-48X6 | Gondola Header | 1 |
